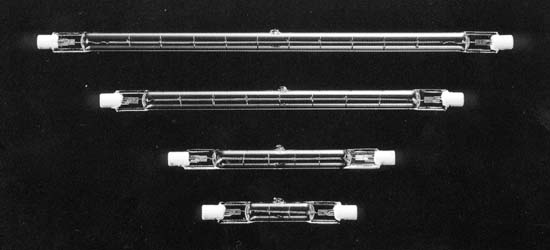

Tungsten-Halogen Lamps Photo
Top Quality & High Reliability from SIGMA
SIGMA Provides Reliable energy Source for "lighting" & "Heating"...

HOME

Feature for Tungsten Halogen Lamp
Halogen Lamp Construction
Specification (Lighting)
Specification (Heating)
Outline of Sigma Corporation
Brief History of Sigma Corporation

Contact Us

SIGMA CORPORATION
Specifications (Lighting)

STANDARD TYPE

Type Voltage
(V)
Wattage
(W)
Lumens
(L m)
Color
Temp.(K)
Bulb Dia
(Dmm) Max.
Length Ave. Life
(Hrs.)
Base Burning
Position
Fig
(L1 mm) (L2 mm)
J 100`130V 100 1600 2850 9.5 74.9 78.3 1500 R7S HORIZ 1
150 2530 2900 12 74.9 78.3 1500 R7S HORIZ 1
100 1600 2850 9.4 114.2 117.6 1500 R7S HORIZ 1
150 2400 2900 9.4 114.2 117.6 1500 R7S HORIZ 1
200 3600 2900 9.4 114.2 117.6 1500 R7S HORIZ 1
250 4500 2950 9.4 114.2 117.6 2000 R7S HORIZ 1
300 5950 2950 9.4 114.2 117.6 2000 R7S HORIZ 1
500 11000 3000 12 114.2 117.6 2000 R7S HORIZ 1
750 15000 3000 12 185.7 189.1 2000 R7S HORIZ 1
1000 22000 3000 12 185.7 189.1 2000 R7S HORIZ 1
1000 22000 3000 12 250.7 254.1 2000 R7S HORIZ 1
1500 33000 3000 12 250.7 254.1 2000 R7S HORIZ 1
200`250V 100 1200 2700 9.5 74.9 78.3 1500 R7S HORIZ 1
150 1950 2750 12 74.9 78.3 1500 R7S HORIZ 1
150 2400 2900 9.4 114.2 117.6 1000 R7S HORIZ 1
200 3200 2900 9.4 114.2 117.6 1000 R7S HORIZ 1
250 3750 2900 9.4 114.2 117.6 1500 R7S HORIZ 1
300 4800 2900 9.4 114.2 117.6 2000 R7S HORIZ 1
500 9500 3000 12 114.2 117.6 2000 R7S HORIZ 1
750 16500 3000 12 185.7 189.1 2000 R7S HORIZ 1
1000 22000 3000 12 185.7 189.1 2000 R7S HORIZ 1
1500 33000 3000 12 250.7 254.1 2000 R7S HORIZ 1
2000 44000 3000 12 327.4 330.8 2000 R7S HORIZ 1
2000 44000 3000 12
334.4 2000 Fa4 HORIZ 2

APPLICATIONS
Outdoor Floodlighting : Building floodlighting, roads, show windows, signboards, advertising towers, stadiums, shunting yards, wharves, airports, etc.
High Bay Indoor Lighting : General high bay factory and gymnasium lighting.
(Note : use for holizontal only)


for use of SIGMA Tungsten-Halogen Lamps
Please note that the lamps are made of quartz glass and should not be handled with bare hands as it will cause deterioration of the lamp performance.
Should the lamps be started, clean them with a cloth soaked with alcohol and dry them thoroughly before burning.
The lamps are pressurized, so should be provided with some means to protect people or the surroundings in case of shattering.
Temperature limitation at the pinched seal end is 350 max. Excess of the limit may lead to premature lamp failure.Bulb wall temperature must be kept above 250 to maintain the regenerative halogen cycle.
Burning position of the lamp is to be set within 4 deg. of the horizontal.
By setting burning position separetely with special specification, any type can be also available for production.
Fig.1 and Fig.2
